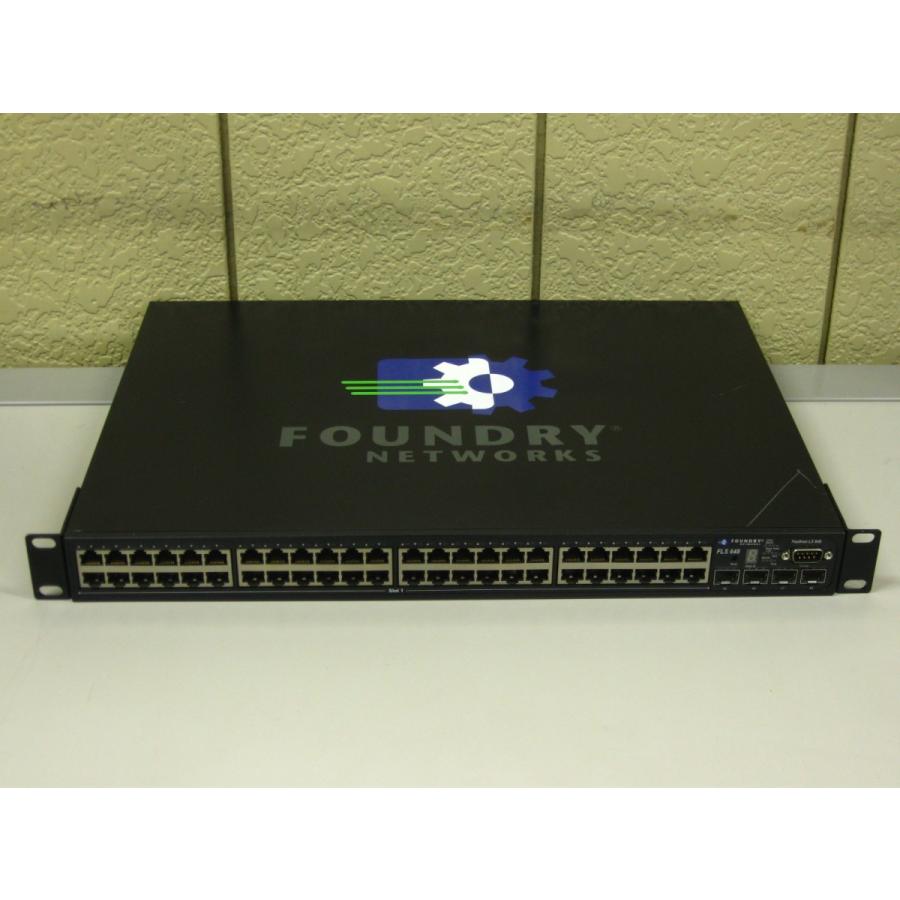

▽FOUNDRY FLS648 FastIron LS 648 48ポート L3 ギガビットスイッチ 中古

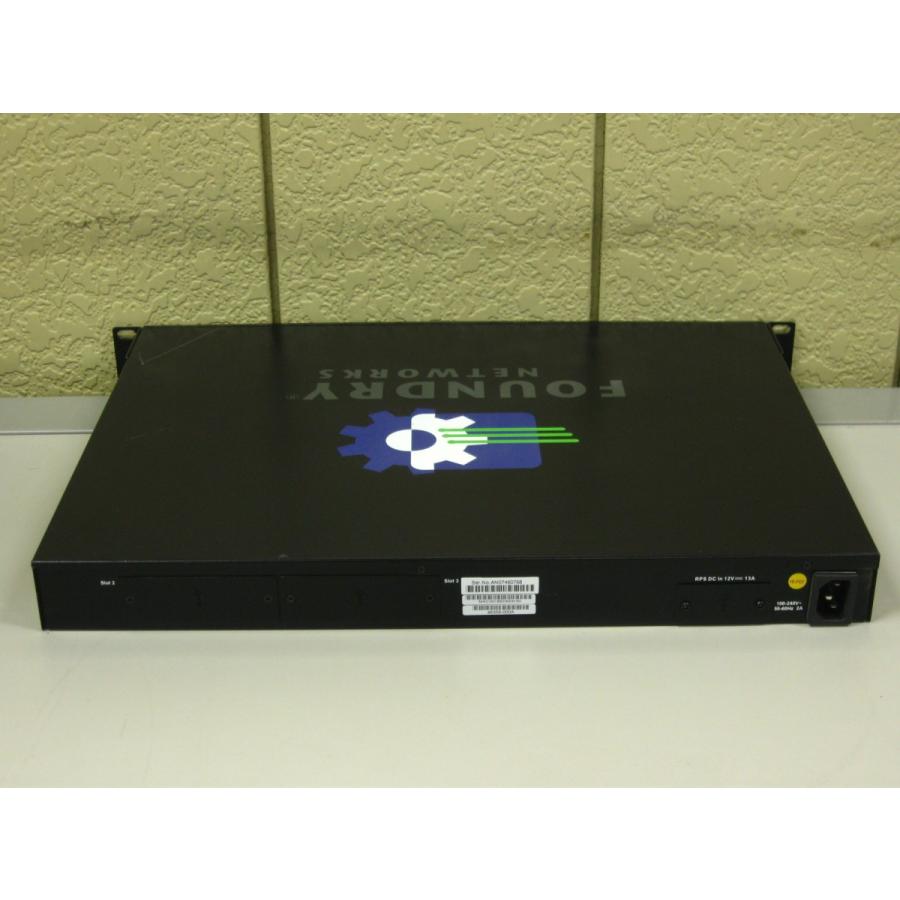

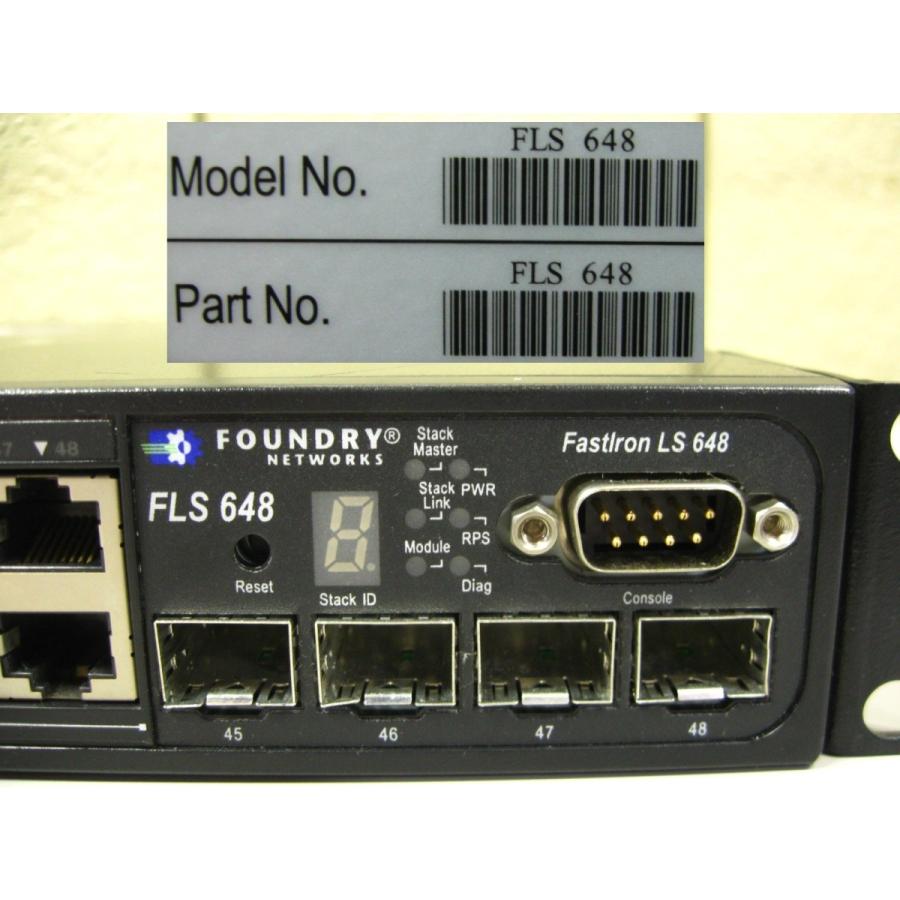

FOUNDRY Networks製 FastIron LS 648 48ポート L3スイッチ です。Model No.：FLS648Parts No.：FLS648動作に問題が無い事を確認済みです。全ての物理層(48×10/100/1000Base-T、4×SFP(miniGBIC)）はリンクアップ/データ伝送に問題が無い事を動作確認済みです。全ての設定は初期化済みです(セキュリティも解除済みです)。付属品はACケーブル(3極タイプ)のみとなります。写真は同機種の写真を流用しているため外観の状態が若干異なる場合がございます。"} 新品と同程度の状態をご希望の方のご購入はご遠慮ください。
※ハードウェア、ソフトウェアに関するサポートは行っておりません。
以下、スタートアップ出力およびshow version/flash/chassisです。
FGS Boot Code Version 05.0.00
Enter "b" to stop at boot ...
BOOT INFO: load monitor from primary, size = 243149
Appln_Monitor:root_task: ***local_overide = 0***
BOOT INFO: load image from primary
Brocade PPC filter after decompression
BOOT INFO: bootparam at 0013ca6c, mp_flash_size = 002befb7
BOOT INFO: code decompression completed
BOOT INFO: branch to 00400100
Starting Main Task ...Pre Parsing Config Data ...
INFO: empty config data in the primary area, try to read from backup
INFO: empty config data in the backup area also
Parsing Config Data ...
INFO: empty config data in the primary area, try to read from backup
INFO: empty config data in the backup area also
Copyright (c) 1996-2010 Brocade Communications Systems, Inc.
UNIT 1: compiled on Apr 10 2015 at 22:28:01 labeled as FGS07202n
(2879415 bytes) from Primary FGS07202n.bin
SW: Version 07.2.02nT7e1
Boot-Monitor Image size = 416213, Version:05.0.00T7e5 (Fev2)
HW: Stackable FLS648
==========================================================================
UNIT 1: SL 1: FLS-48G 48-port Management Module
Serial #: AN********
P-ENGINE 0: type D804, rev 01
P-ENGINE 1: type D804, rev 01
==========================================================================
400 MHz Power PC processor 8248 (version 130/2014) 66 MHz bus
512 KB boot flash memory
30720 KB code flash memory
128 MB DRAM
STACKID 1 system uptime is 5 seconds
The system : started=warm start reloaded=by "reload"
FLS648 Switch>
FLS648 Switch>en
No password has been assigned yet...
FLS648 Switch#
FLS648 Switch#show version
Copyright (c) 1996-2010 Brocade Communications Systems, Inc.
UNIT 1: compiled on Apr 10 2015 at 22:28:01 labeled as FGS07202n
(2879415 bytes) from Primary FGS07202n.bin
SW: Version 07.2.02nT7e1
Boot-Monitor Image size = 416213, Version:05.0.00T7e5 (Fev2)
HW: Stackable FLS648
==========================================================================
UNIT 1: SL 1: FLS-48G 48-port Management Module
Serial #: AN********
P-ENGINE 0: type D804, rev 01
P-ENGINE 1: type D804, rev 01
==========================================================================
400 MHz Power PC processor 8248 (version 130/2014) 66 MHz bus
512 KB boot flash memory
30720 KB code flash memory
128 MB DRAM
STACKID 1 system uptime is 1 minutes 42 seconds
The system : started=warm start reloaded=by "reload"
FLS648 Switch#
FLS648 Switch#show flash
Stack unit 1:
Compressed Pri Code size = 2879415, Version 07.2.02nT7e1 (FGS07202n.bin)
Compressed Sec Code size = 3183027, Version 07.2.02nT7e1 (FGSL07202n.bin)
Compressed Boot-Monitor Image size = 416213, Version 05.0.00T7e5
Code Flash Free Space = 24903680
FLS648 Switch#
FLS648 Switch#show chassis
The stack unit 1 chassis info:
Power supply 1 (NA - AC - Regular) present, status ok
Power supply 2 not present
Fan 1 ok, speed (auto): [[1]]23
Fan 2 ok, speed (auto): [[1]]23
Fan 3 ok, speed (auto): [[1]]23
Fan controlled temperature: 50.0 deg-C
Fan speed switching temperature thresholds:
Speed 1: NM53 deg-C
Speed 2: 3755 deg-C
Speed 3: 50 90 deg-C (shutdown)
Sensor B Temperature Readings:
Current temperature : 50.0 deg-C
Sensor A Temperature Readings:
Current temperature : 40.5 deg-C
Warning level.......: 85.0 deg-C
Shutdown level......: 90.0 deg-C
Boot Prom MAC : 001b.ed**.****
Management MAC: 001b.ed**.****
FLS648 Switch#
